The aim of The Computer Network Laboratory is to educate about the bases of constructing local and remote computer networks as well as the advanced ATM (Asynchronous Transfer Mode) nets.
The basic course consists of:
topology, construction and wiring of the network and its components: repeaters, bridges,
switches and routers,
routing techniques,
virtual network construction.
The advanced course includes the interaction of standard computer networks and the ATM nets. It consists of:
local network emulation,
ATM network signaling,
managing of ATM switches,
QoS - Quality of Service,
models of cooperation between IP and ATM networks.

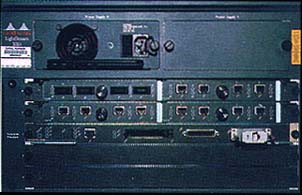

CISCO LS 1010
main frame:
RISC MIPS R4600 32-bit 100-MHz, providing a maximal bandwidth up to 5 Gbps.
modular framework which enables connecting up to 32 interfaces,
available interfaces:
- 12 * STS3c/STM1 RJ-45/TP-5 155 Mbps,
- 4 * STS3c/STM1 SC multimode optical fiber 155 Mbps,
support of all ATM AAL levels (AAL1 - AAL5),
up to 32000 point-to-point and 1985 point-to-multipoint connections,
support of Permanent Virtual Circuits Connections (PVCC) and Switched Virtual Circuits Connections (SVCC),
Soft Permanent Virtual Channel (SPVCI), Soft Permanent Virtual Path (SPVPI),
point-to-point and point-to-multipoint connections available,
management of resources offering services listed below:
- Constant Bit Rate (CBR),
- Variable Bit Rate (VBR),
- Available Bit Rate (ABR),
- Unspecified Bit Rate (UBR),
ATM User Network Interface signaling UNI 3.0/3.1,
protocol compatible with ATM NNI signaling:
- Interim Interswitch Signaling Protocol (IISP),
- Private Network-Network Interface (PNNI),
LAN Emulation Client.

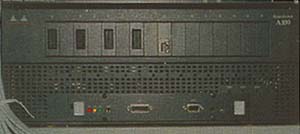

CISCO LS 100
32-bit, 2.4 Gbps bandwidth RISC main frame with a minimal virtual output buffer for 1000 cells,
modular framework which enables connecting up to 16 interfaces,
available interfaces:
- 1 * STS3c/STM1 RJ-45/UTP-5 155 Mbps,
- 4 * STS3c/STM1 SC multimode optical fiber 155 Mbps,
support of all ATM AAL levels (AAL1 - AAL5),
fully integrated control of multicast transport without bandwidth loss,
Permanent Virtual Circuits (PVC) and
Switched Virtual Circuits (SVC) management,
Virtual Channel (VCI), Virtual Path (VPI), point-to-point and
point-to-multipoint connections support,
up to 4096 point-to-point per interface and 1024 point-to-multipoint per switch connections.

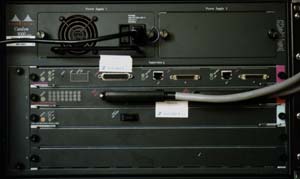

Catalyst 5000
CATALYST 5000 is easy to configure modular switch, suitable for a local or campus network.
It has a switching fabric and controls Ethernet (10 Mbps) and Fast Ethernet (100 Mbps).
It may deliver connections to a network backbone in
Fast Ethernet, FDDI and ATM standards.
If all modules are present, the Internal switching fabric provides 1.2 Gbps bandwidth and 1 million packets per second.
CATALYST 5000 controls up to 16000 MACs and enables creating and management of up to 1024
virtual LANs.
CATALYST 5000 unit in the Computer Network Laboratory is equipped with the modules listed below:
Supervisor Engine with 2
Fast Ethernet ports (RJ-45/UTP-5 or MII, 100 Mbps) and the supervisor's port,
Ethernet switch, 24 ports RJ-45/UTP-5, 10 Mbps,
ATM LAN Emulation, 1 port STS3c/STM1 SC (multimode optical fiber 155 Mbps).
CISCO routers are multi-protocol devices. The
software supports
X.25, IP, DECnet, XNS, Novell IPX, Apollo, AppleTalk, CLNS,
Vines, LAT, RIP, IGRP and OSPF emulation protocols.
EXEC instruction interpreter is uniform regardless of the OS, which makes the configuration process substantially easier.
CISCO 2514 (2 units)
2 Ethernet interfaces/IEE 802.3
2 serial interfaces
processor: Motorola 68030
memory: 1024/1024 kB + 32 kB Non-volatile RAM (NVRAM)
operating system: IOS v. 10.3
CISCO 2501 (2 units)
1 Ethernet/IEE 802.3 interface
2 serial interfaces
processor: Motorola 68030
memory: 1024/1024 kB + 32 kB Non-volatile RAM (NVRAM)
operating system: IGS-PFPX v. 9.14(6)
CISCO CGS
2 Ethernet/IEE 802.3 interfaces
2 serial interfaces
processor: Motorola 68020
memory: 1024/1024 kB + 32 kB Non-volatile RAM (NVRAM)
operating system: GS3-K v. 9.1(8)
CISCO IGS
2 Ethernet/IEE 802.3 interfaces
processor: Motorola 68020
memory: 1024/512 kB + 16 kB Non-volatile RAM (NVRAM)
operating system: IGS-BPRX v. 9.1(8)

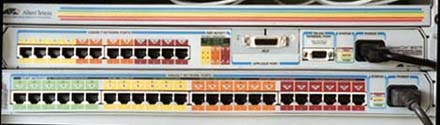

CentreCOM AT3612TR i AT3624TRS
compatible with IEEE 802.3 signaling,
network control mechanisms: SNMP and Telnet,
multiport configurations: 24 10BASE-T RJ45 ports in
AT3624TRS model and 12 10BASE-T RJ45 ports in AT3612TR model,
advanced diagnostic functions,
standalone and module mode operating possibility.

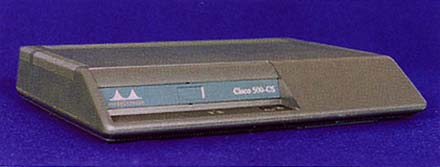

CISCO 500-CS
Connects devices to a local area network (LAN) or wide area network (WAN) through asynchronous links using SLIP and PPP. It has:
single Ethernet port connecting the local area networking (LAN) to the Ethernet network,
8 asynchronous terminal ports (RJ-45) providing RS-232 and RS-423
signaling.
